2SK3801

In Stock: 8,863

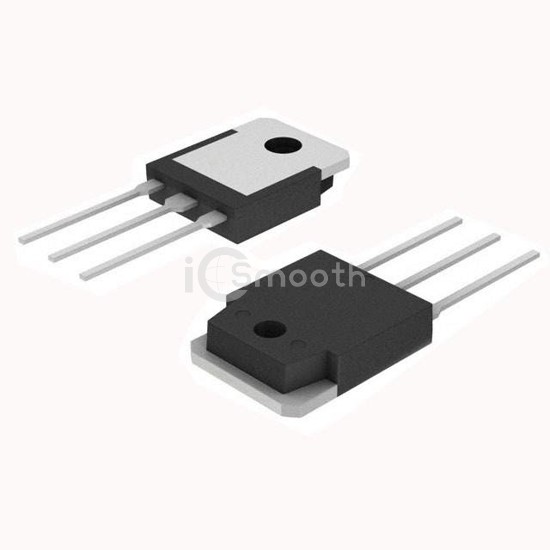

2SK3801 - Sanken - Transistors - FETs, MOSFETs - Single
REF: 2SK3801 Sanken
2SK3801

Sanken

MOSFET N-CH 40V 70A TO3P

2SK3801 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 40V 70A TO3P. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 8,863

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5100 pF @ 10 V
FET Feature-
Power Dissipation (Max)100W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3P
Package / CaseTO-3P-3, SC-65-3
