Name: 2SK3800
Brand: Sanken
SKU: 2SK3800
Price: 2.13 USD
Availability: InStock

REF: 2SK3800 Sanken

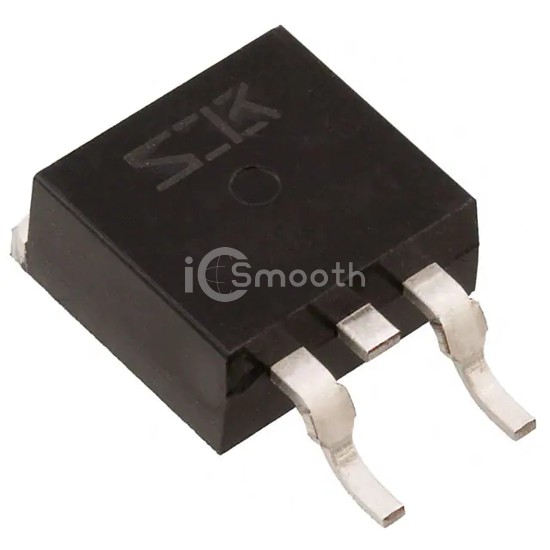

2SK3800

MOSFET N-CH 40V 70A TO220S

2SK3800 is a Transistors - FETs, MOSFETs - Single manufactured by Sanken. MOSFET N-CH 40V 70A TO220S. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 8,104

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5100 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-220S
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
