Name: RT9740AGQW
Brand: Richtek USA Inc.
SKU: RT9740AGQW
Price: 0.79 USD
Availability: InStock

REF: RT9740AGQW Richtek USA Inc.

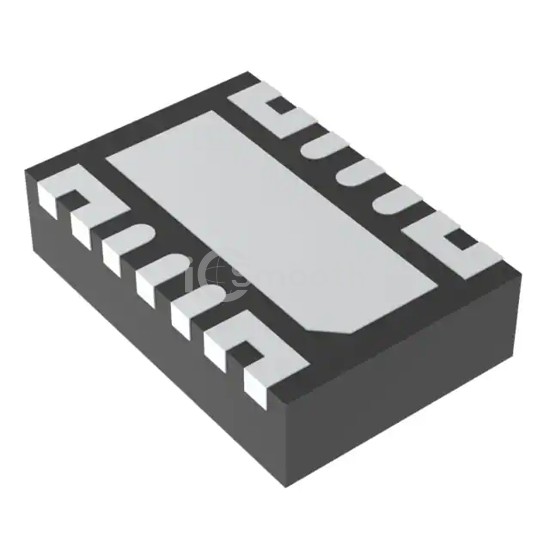

RT9740AGQW

IC LOAD SWITCH WDFN-14T

RT9740AGQW is a PMIC - Power Distribution Switches, Load Drivers manufactured by Richtek USA Inc.. IC LOAD SWITCH WDFN-14T. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 14-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,574

Tiered Pricing USD

1+ $0.7900 —

10+ $0.5670 -28%

25+ $0.5096 -35%

100+ $0.4469 -43%

250+ $0.4169 -47%

500+ $0.3988 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	6A
Rds On (Typ)	18mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	14-WDFN-TL (3x2)
Package / Case	14-WFDFN Exposed Pad
