Name: UPA2813T1L-E1-AT
Brand: Renesas Electronics America Inc
SKU: UPA2813T1L-E1-AT
Availability: InStock

REF: UPA2813T1L-E1-AT Renesas Electronics America Inc

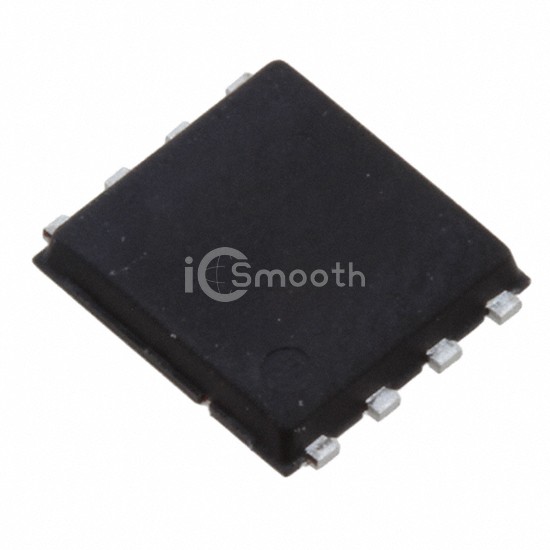

UPA2813T1L-E1-AT

Renesas Electronics America Inc

MOSFET P-CH 30V 27A 8HVSON

UPA2813T1L-E1-AT is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 30V 27A 8HVSON. Key specifications: mounting type Surface Mount, package / case 8-PowerVDFN.

Request a Quote

In Stock: 8,101

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	27A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	6.2mOhm @ 27A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	3130 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta), 52W (Tc)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	8-HVSON (3.3x3.3)
Package / Case	8-PowerVDFN
