Name: UPA2738GR-E2-AX
Brand: Renesas Electronics America Inc
SKU: UPA2738GR-E2-AX
Availability: InStock

REF: UPA2738GR-E2-AX Renesas Electronics America Inc

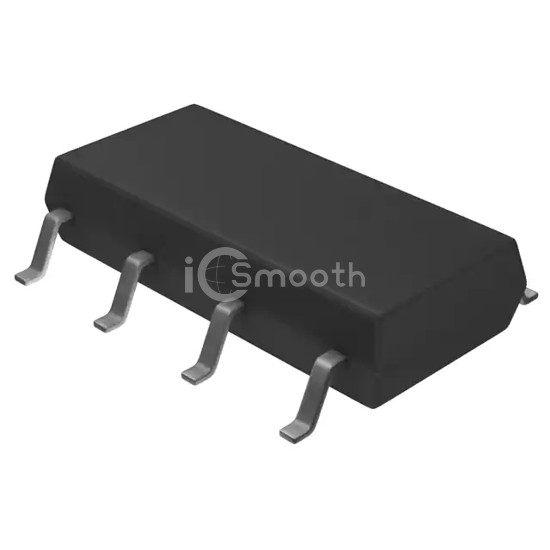

UPA2738GR-E2-AX

MOSFET P-CH 30V 10A 8SOP

UPA2738GR-E2-AX is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 30V 10A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,632

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	37 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1450 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
