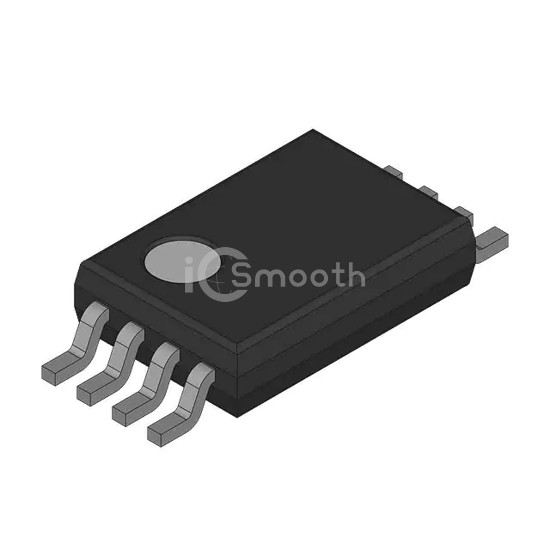

Name: UPA2521T1H-T2-AT
Brand: Renesas Electronics America Inc
SKU: UPA2521T1H-T2-AT
Price: 0.67 USD
Availability: InStock

REF: UPA2521T1H-T2-AT Renesas Electronics America Inc

UPA2521T1H-T2-AT

Renesas Electronics America Inc

MOSFET N-CH 30V 8A 8VSOF

UPA2521T1H-T2-AT is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 30V 8A 8VSOF. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.

Request a Quote

In Stock: 84,000

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	16.5mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	7.6 nC @ 5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	780 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSOF
Package / Case	8-SMD, Flat Lead
