RV1S9960ACCSP-10YC#SC0

In Stock: 220

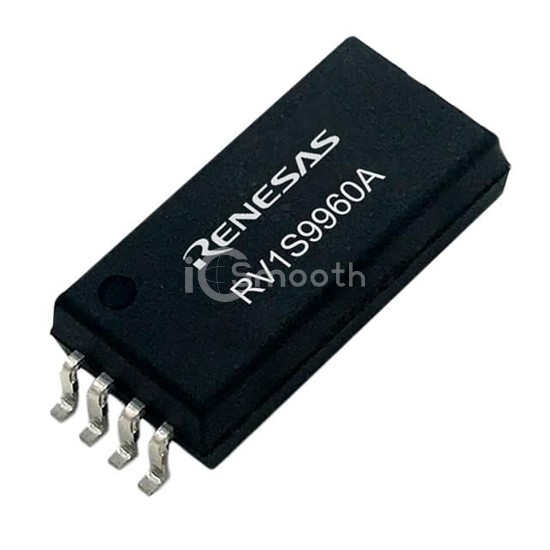

RV1S9960ACCSP-10YC#SC0 - Renesas Electronics America Inc - Optoisolators - Logic Output
REF: RV1S9960ACCSP-10YC#SC0 Renesas Electronics America Inc
RV1S9960ACCSP-10YC#SC0

Renesas Electronics America Inc

HI-SPEED OPTOCPLR 8PIN LSDIP

RV1S9960ACCSP-10YC#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPEED OPTOCPLR 8PIN LSDIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.543", 13.80mm Width).

Datasheet Request a Quote

In Stock: 220

Tiered Pricing USD
1+ $10.6100 —
10+ $8.1720 -23%
100+ $6.7461 -36%
500+ $6.1259 -42%
1,000+ $5.9247 -44% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)50kV/µs
Input Type-
Output TypeCMOS
Current - Output / Channel10 mA
Data Rate15Mbps
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Rise / Fall Time (Typ)5ns, 5ns
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)6mA
Voltage - Supply2.7V ~ 5.5V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.543", 13.80mm Width)
Supplier Device Package8-LSDIP
