RV1S9060ACCSP-10YV#KC0

In Stock: 8,675

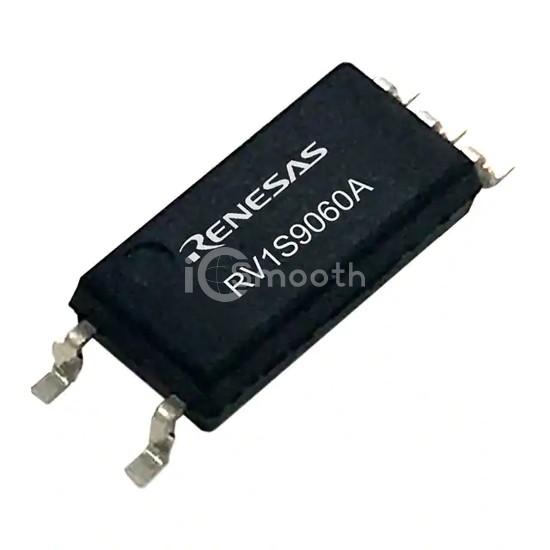

RV1S9060ACCSP-10YV#KC0 - Renesas Electronics America Inc - Optoisolators - Logic Output
REF: RV1S9060ACCSP-10YV#KC0 Renesas Electronics America Inc
RV1S9060ACCSP-10YV#KC0

Renesas Electronics America Inc

HI-SPD OPTOCPLR LSO5

RV1S9060ACCSP-10YV#KC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPD OPTOCPLR LSO5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 8,675

Tiered Pricing USD
1+ $1.5200 —
10+ $1.0750 -29%
100+ $0.8091 -47%
500+ $0.6915 -55%
1,000+ $0.6531 -57% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel10 mA
Data Rate15Mbps
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Rise / Fall Time (Typ)5ns, 5ns
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20mA
Voltage - Supply2.7V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package5-LSOP
