Name: RV1S9231ACCSP-10YV#SC0
Brand: Renesas Electronics America Inc
SKU: RV1S9231ACCSP-10YV#SC0
Price: 4.59 USD
Availability: InStock

REF: RV1S9231ACCSP-10YV#SC0 Renesas Electronics America Inc

RV1S9231ACCSP-10YV#SC0

Renesas Electronics America Inc

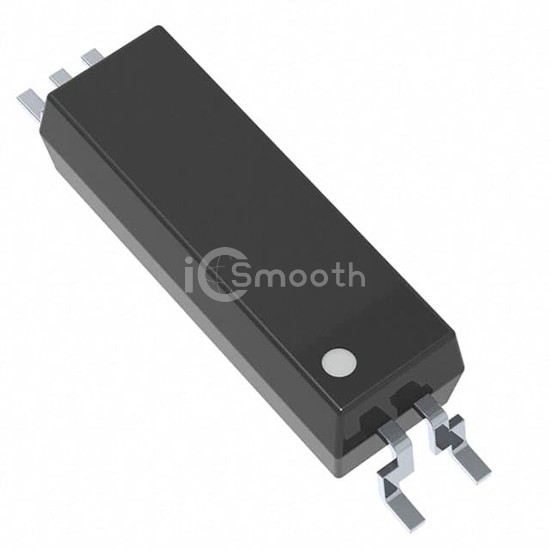

IGBT DRIVER (2.5A OUTPUT), LSSO5

RV1S9231ACCSP-10YV#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. IGBT DRIVER (2.5A OUTPUT), LSSO5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 15V ~ 30V, package / case 5-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 39

Tiered Pricing USD

1+ $4.5900 —

20+ $3.1485 -31%

100+ $2.6995 -41%

500+ $2.3927 -48%

1,000+ $2.2930 -50%

2,000+ $2.2086 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	2.5 A
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	175ns, 175ns
Rise / Fall Time (Typ)	40ns, 40ns
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	15V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	5-SMD, Gull Wing
Supplier Device Package	5-LSSO
