RV1S9213ACCSP-10YV#SC0

In Stock: 5,248

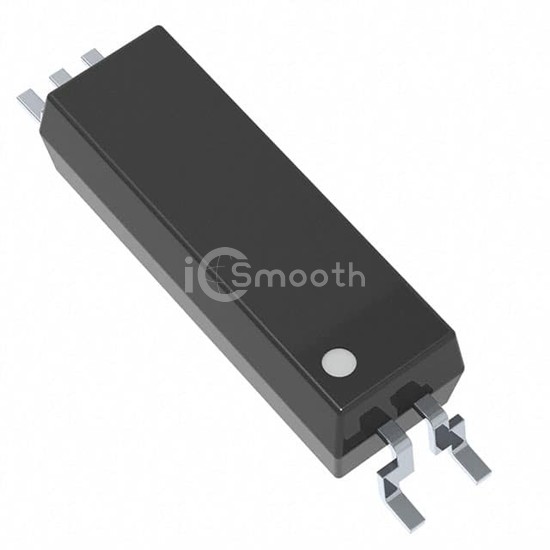

RV1S9213ACCSP-10YV#SC0 - Renesas Electronics America Inc - Optoisolators - Logic Output
REF: RV1S9213ACCSP-10YV#SC0 Renesas Electronics America Inc
RV1S9213ACCSP-10YV#SC0

Renesas Electronics America Inc

OPTO COUPLER IN 5PIN SSOP

RV1S9213ACCSP-10YV#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. OPTO COUPLER IN 5PIN SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 25V, package / case 5-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,248

Tiered Pricing USD
1+ $4.0500 —
20+ $2.7590 -32%
100+ $2.3558 -42%
500+ $2.0800 -49%
1,000+ $1.9903 -51%
2,000+ $1.9144 -53%
5,000+ $1.8317 -55% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel15 mA
Data Rate1Mbps
Propagation Delay tpLH / tpHL (Max)750ns, 500ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 25V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case5-SMD, Gull Wing
Supplier Device Package5-LSSO
