Name: RV1S9209ACCSP-10YC#SC0
Brand: Renesas Electronics America Inc
SKU: RV1S9209ACCSP-10YC#SC0
Price: 4.12 USD
Availability: InStock

REF: RV1S9209ACCSP-10YC#SC0 Renesas Electronics America Inc

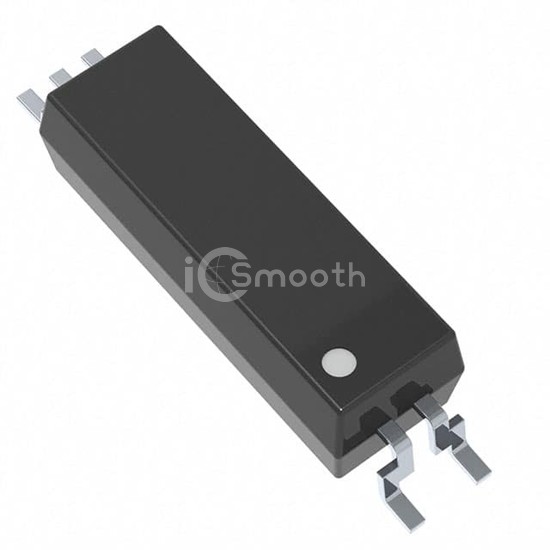

RV1S9209ACCSP-10YC#SC0

Renesas Electronics America Inc

IPM DRIVER (ACTIVE HIGH OUTPUT),

RV1S9209ACCSP-10YC#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. IPM DRIVER (ACTIVE HIGH OUTPUT),. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 20V, package / case 5-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,669

Tiered Pricing USD

1+ $4.1200 —

20+ $2.8125 -32%

100+ $2.4029 -42%

500+ $2.1228 -48%

1,000+ $2.0317 -51%

2,000+ $1.9546 -53%

5,000+ $1.8707 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	25 mA
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Rise / Fall Time (Typ)	25ns, 5ns
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	5-SMD, Gull Wing
Supplier Device Package	5-LSSO
