Name: RV1S9160ACCSP-100C#SC0
Brand: Renesas Electronics America Inc
SKU: RV1S9160ACCSP-100C#SC0
Price: 4.04 USD
Availability: InStock

REF: RV1S9160ACCSP-100C#SC0 Renesas Electronics America Inc

RV1S9160ACCSP-100C#SC0

Renesas Electronics America Inc

HI-SPEED OPTOCPLR SO-5

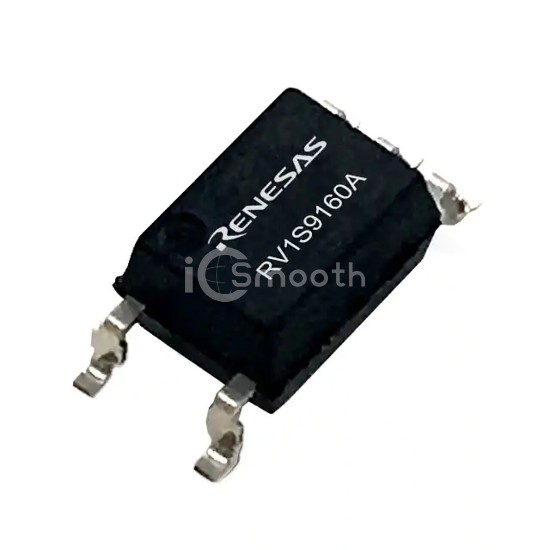

RV1S9160ACCSP-100C#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPEED OPTOCPLR SO-5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 3,322

Tiered Pricing USD

1+ $4.0400 —

20+ $2.7805 -31%

100+ $2.3867 -41%

500+ $2.1179 -48%

1,000+ $2.0305 -50%

2,000+ $2.0250 -50% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Input Type	-
Output Type	CMOS
Current - Output / Channel	10 mA
Data Rate	15Mbps

Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Rise / Fall Time (Typ)	5ns, 5ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	6mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
