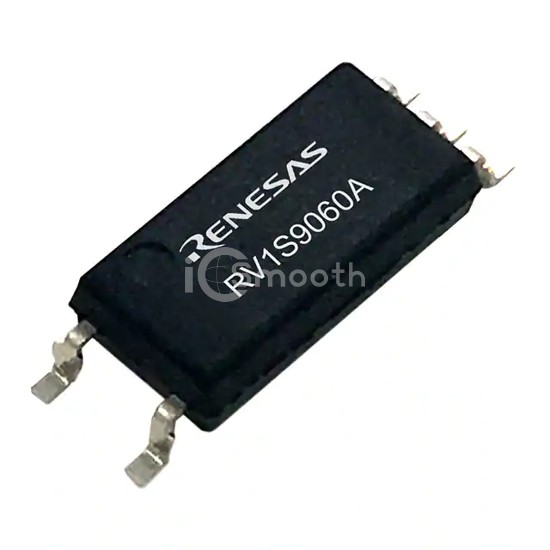

Name: RV1S9060ACCSP-10YC#SC0
Brand: Renesas Electronics America Inc
SKU: RV1S9060ACCSP-10YC#SC0
Price: 1.69 USD
Availability: InStock

REF: RV1S9060ACCSP-10YC#SC0 Renesas Electronics America Inc

RV1S9060ACCSP-10YC#SC0

Renesas Electronics America Inc

HI-SPEED OPTOCPLR LSO-5

RV1S9060ACCSP-10YC#SC0 is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPEED OPTOCPLR LSO-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 6V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 8,823

Tiered Pricing USD

1+ $1.6900 —

20+ $1.0955 -35%

100+ $0.9079 -46%

500+ $0.7788 -54%

1,000+ $0.7366 -56%

2,000+ $0.7009 -59%

5,000+ $0.6619 -61%

10,000+ $0.6377 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Input Type	-
Output Type	CMOS
Current - Output / Channel	10 mA
Data Rate	15Mbps

Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Rise / Fall Time (Typ)	5ns, 5ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	6mA
Voltage - Supply	6V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package	5-LSO
