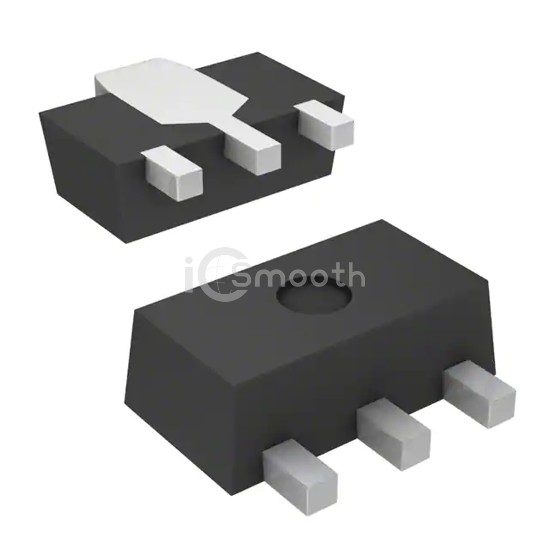

Name: RQK0607AQDQS#H1
Brand: Renesas Electronics America Inc
SKU: RQK0607AQDQS#H1
Availability: InStock

REF: RQK0607AQDQS#H1 Renesas Electronics America Inc

RQK0607AQDQS#H1

MOSFET N-CH 60V 2.4A UPAK

RQK0607AQDQS#H1 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 60V 2.4A UPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 7,470

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	270mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	2 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	170 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UPAK
Package / Case	TO-243AA
