RJK60S5DPE-00#J3

In Stock: 40,000

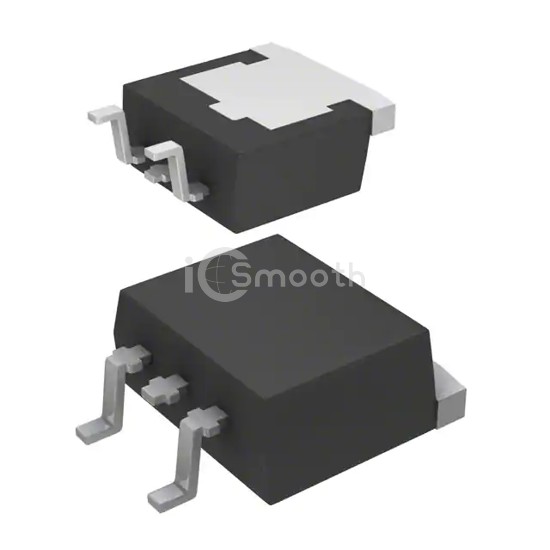

RJK60S5DPE-00#J3 - Renesas Electronics America Inc - Transistors - FETs, MOSFETs - Single
REF: RJK60S5DPE-00#J3 Renesas Electronics America Inc
RJK60S5DPE-00#J3

Renesas Electronics America Inc

MOSFET N-CH 600V 20A 4LDPAK

RJK60S5DPE-00#J3 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 600V 20A 4LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83.

Datasheet Request a Quote

In Stock: 40,000

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs178mOhm @ 10A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs27 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 25 V
FET FeatureSuper Junction
Power Dissipation (Max)125W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLDPAK
Package / CaseSC-83
