Name: RJK6026DPE-00#J3
Brand: Renesas Electronics America Inc
SKU: RJK6026DPE-00#J3
Availability: InStock

REF: RJK6026DPE-00#J3 Renesas Electronics America Inc

RJK6026DPE-00#J3

Renesas Electronics America Inc

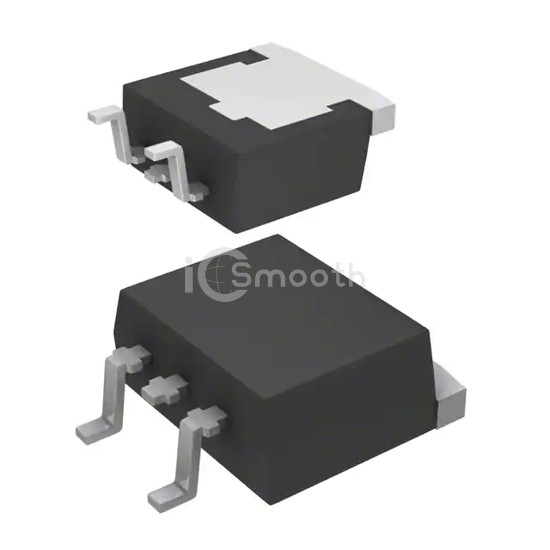

MOSFET N-CH 600V 5A 4LDPAK

RJK6026DPE-00#J3 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 600V 5A 4LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83.

Datasheet Request a Quote

In Stock: 5,827

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.4Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	440 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	62.5W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LDPAK
Package / Case	SC-83
