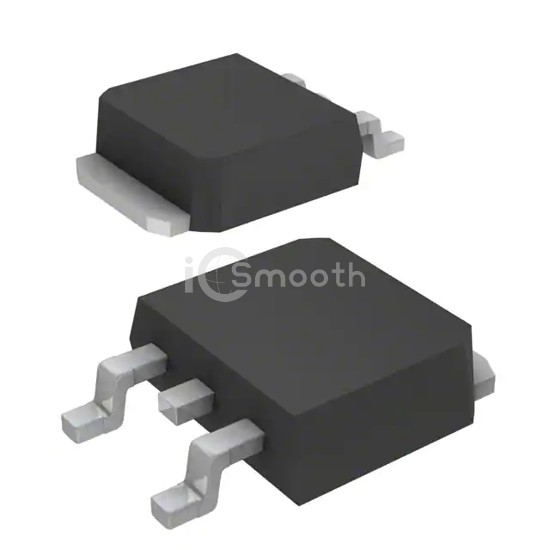

Name: RJK6025DPD-00#J2
Brand: Renesas Electronics America Inc
SKU: RJK6025DPD-00#J2
Availability: InStock

REF: RJK6025DPD-00#J2 Renesas Electronics America Inc

RJK6025DPD-00#J2

Renesas Electronics America Inc

MOSFET N-CH 600V 1A MP3A

RJK6025DPD-00#J2 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 600V 1A MP3A. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,039

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	17.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	37.5 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	29.7W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MP-3A
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
