Name: RJK6015DPM-00#T1
Brand: Renesas Electronics America Inc
SKU: RJK6015DPM-00#T1
Availability: InStock

REF: RJK6015DPM-00#T1 Renesas Electronics America Inc

RJK6015DPM-00#T1

Renesas Electronics America Inc

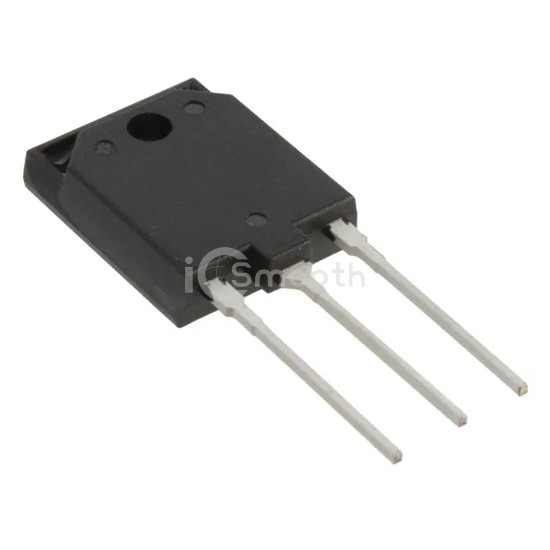

MOSFET N-CH 600V 21A TO3PFM

RJK6015DPM-00#T1 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 600V 21A TO3PFM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 5,990

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 10.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	67 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PFM
Package / Case	TO-220-3 Full Pack
