Name: RJK5033DPD-00#J2
Brand: Renesas Electronics America Inc
SKU: RJK5033DPD-00#J2
Price: 1.04 USD
Availability: InStock

REF: RJK5033DPD-00#J2 Renesas Electronics America Inc

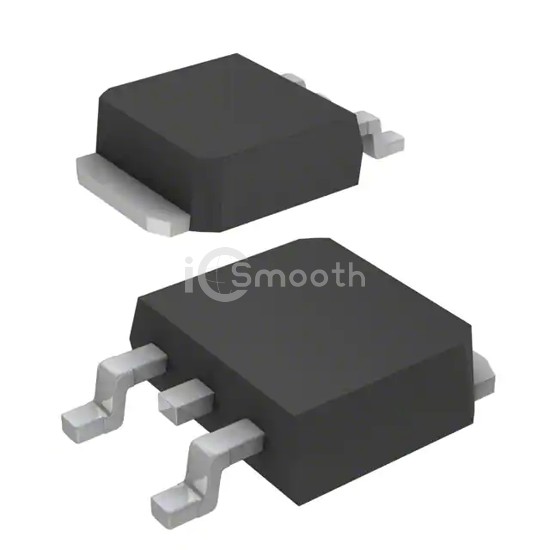

RJK5033DPD-00#J2

Renesas Electronics America Inc

MOSFET N-CH 500V 6A MP3A

RJK5033DPD-00#J2 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 500V 6A MP3A. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 7,330

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3Ohm @ 3A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MP-3A
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
