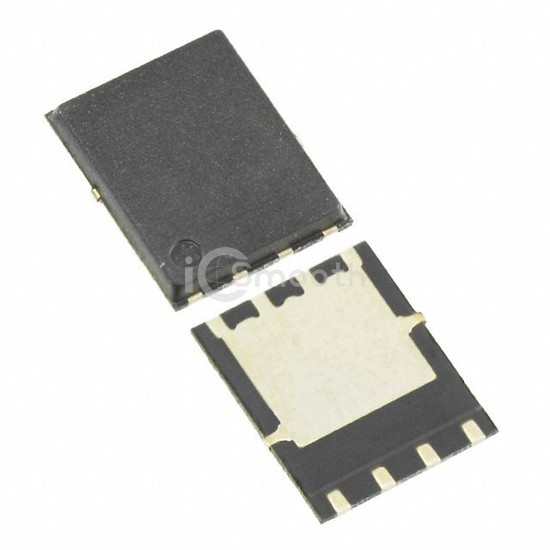

Name: RJK2555DPA-WS#J0
Brand: Renesas Electronics America Inc
SKU: RJK2555DPA-WS#J0
Availability: InStock

REF: RJK2555DPA-WS#J0 Renesas Electronics America Inc

RJK2555DPA-WS#J0

Renesas Electronics America Inc

MOSFET N-CH 250V 17A 8WPAK

RJK2555DPA-WS#J0 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 250V 17A 8WPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerWDFN.

Request a Quote

In Stock: 2,688

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	104mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	39 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	30W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	8-WPAK (3)
Package / Case	8-PowerWDFN
