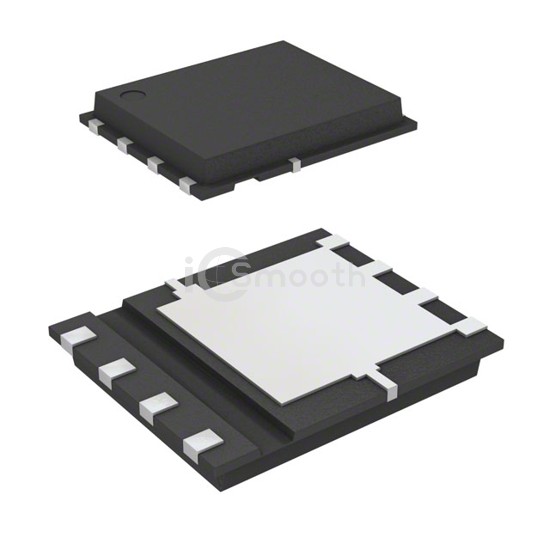

Name: RJK2055DPA-00#J0
Brand: Renesas Electronics America Inc
SKU: RJK2055DPA-00#J0
Availability: InStock

REF: RJK2055DPA-00#J0 Renesas Electronics America Inc

RJK2055DPA-00#J0

Renesas Electronics America Inc

MOSFET N-CH 200V 20A 8WPAK

RJK2055DPA-00#J0 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 200V 20A 8WPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 7,694

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	69mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WPAK (3)
Package / Case	8-PowerWDFN
