Name: RJK1575DPA-00#J5A
Brand: Renesas Electronics America Inc
SKU: RJK1575DPA-00#J5A
Price: 1.70 USD
Availability: InStock

REF: RJK1575DPA-00#J5A Renesas Electronics America Inc

RJK1575DPA-00#J5A

Renesas Electronics America Inc

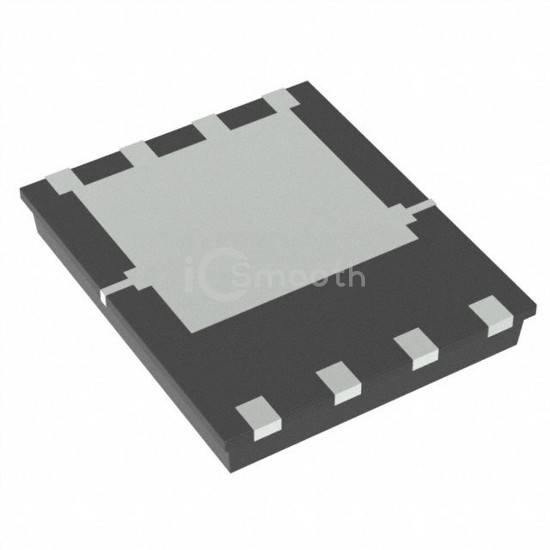

MOSFET N-CH 150V 25A WPAK

RJK1575DPA-00#J5A is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 150V 25A WPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,565

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	48mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	37 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	WPAK(3F) (5x6)
Package / Case	8-PowerVDFN
