Name: RJK0703DPN-A0#T2
Brand: Renesas Electronics America Inc
SKU: RJK0703DPN-A0#T2
Price: 3.91 USD
Availability: InStock

REF: RJK0703DPN-A0#T2 Renesas Electronics America Inc

RJK0703DPN-A0#T2

Renesas Electronics America Inc

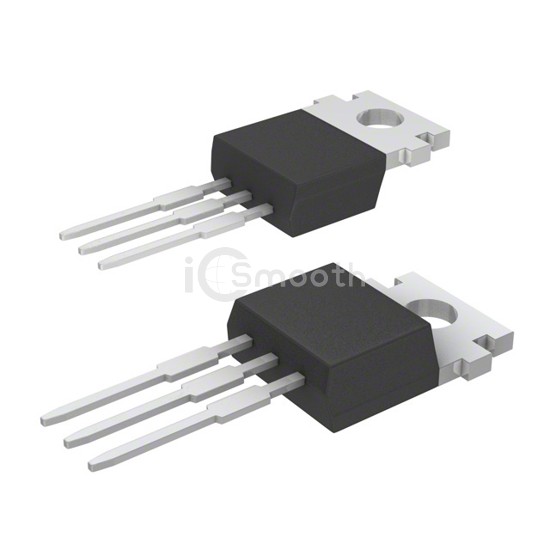

MOSFET N-CH 75V 70A TO220ABA

RJK0703DPN-A0#T2 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 75V 70A TO220ABA. Key specifications: mounting type Through Hole, operating temperature 150°C, package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,944

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	70A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.7mOhm @ 35A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	56 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4150 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	125W (Ta)
Operating Temperature	150°C
Mounting Type	Through Hole
Supplier Device Package	TO-220ABA
Package / Case	TO-220-3
