Name: RJK0603DPN-A0#T2
Brand: Renesas Electronics America Inc
SKU: RJK0603DPN-A0#T2
Price: 3.12 USD
Availability: InStock

REF: RJK0603DPN-A0#T2 Renesas Electronics America Inc

RJK0603DPN-A0#T2

Renesas Electronics America Inc

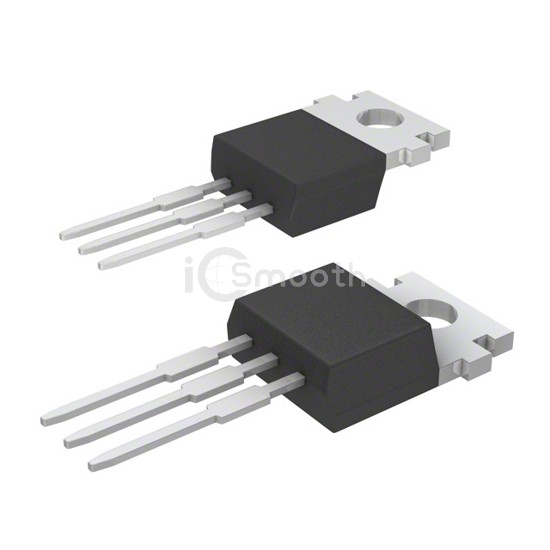

MOSFET N-CH 60V 80A TO220ABA

RJK0603DPN-A0#T2 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 60V 80A TO220ABA. Key specifications: mounting type Through Hole, operating temperature 150°C, package / case TO-220-3.

Datasheet Request a Quote

In Stock: 4,748

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	80A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	57 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4150 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	125W (Ta)
Operating Temperature	150°C
Mounting Type	Through Hole
Supplier Device Package	TO-220ABA
Package / Case	TO-220-3
