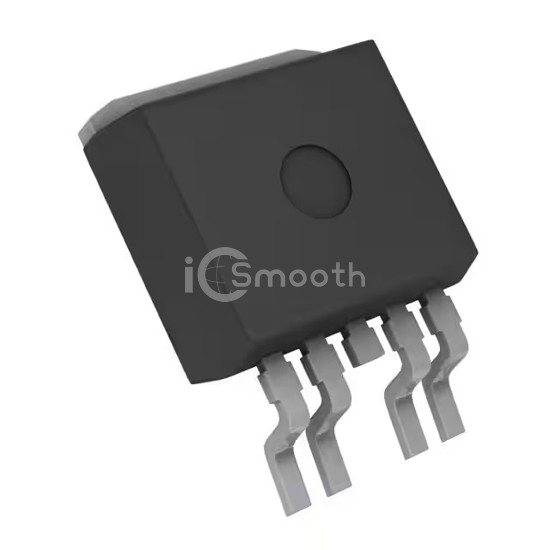

Name: RBA160N04AHPF-4UA01#GB0
Brand: Renesas Electronics America Inc
SKU: RBA160N04AHPF-4UA01#GB0
Price: 3.64 USD
Availability: InStock

REF: RBA160N04AHPF-4UA01#GB0 Renesas Electronics America Inc

RBA160N04AHPF-4UA01#GB0

Renesas Electronics America Inc

POWER TRS2 AUTOMOTIVE MOS MP-25L

RBA160N04AHPF-4UA01#GB0 is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. POWER TRS2 AUTOMOTIVE MOS MP-25L. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-263-7, D²Pak (6 Leads + Tab), TO-263CB.

Datasheet Request a Quote

In Stock: 1,600

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.25mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	236 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta), 250W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
