Name: QS4A215Q1G8
Brand: Renesas Electronics America Inc
SKU: QS4A215Q1G8
Availability: InStock

REF: QS4A215Q1G8 Renesas Electronics America Inc

QS4A215Q1G8

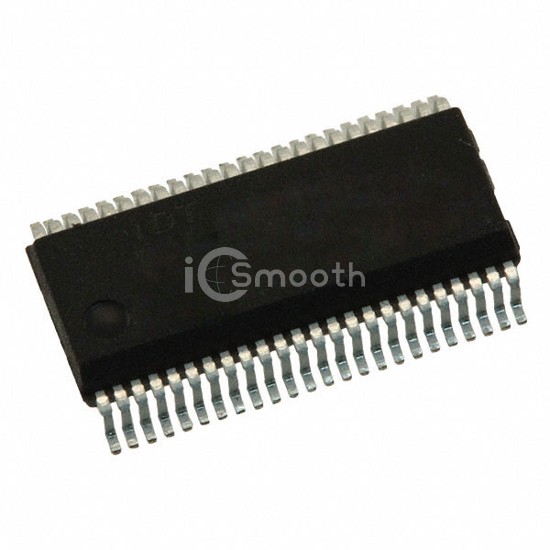

IC MUX/DEMUX DUAL 4X1 48QVSOP

QS4A215Q1G8 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX DUAL 4X1 48QVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 48-FSOP (0.154", 3.90mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 9,652

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	17Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	6ns, 6ns

-3db Bandwidth	700MHz
Charge Injection	1.5pC
Channel Capacitance (CS(off), CD(off))	6pF, 14pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-68dB @ 5MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	48-FSOP (0.154", 3.90mm Width)
Supplier Device Package	48-QVSOP
