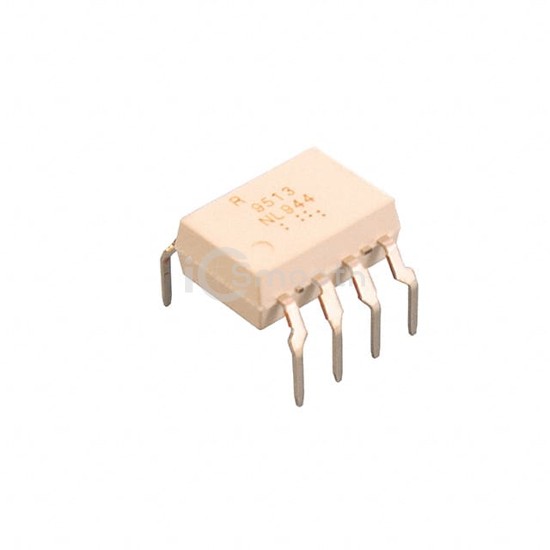

Name: PS9513L1-V-AX
Brand: Renesas Electronics America Inc
SKU: PS9513L1-V-AX
Price: 4.30 USD
Availability: InStock

REF: PS9513L1-V-AX Renesas Electronics America Inc

PS9513L1-V-AX

Renesas Electronics America Inc

HI-SPD OPTOCPLR 8-PIN DIP

PS9513L1-V-AX is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. HI-SPD OPTOCPLR 8-PIN DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 50

Tiered Pricing USD

1+ $4.3000 —

50+ $2.6760 -38%

100+ $2.5126 -42%

500+ $2.2225 -48%

1,000+ $2.1282 -51%

2,000+ $2.0484 -52%

5,000+ $1.9615 -54% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	15 mA
Data Rate	1Mbps

Propagation Delay tpLH / tpHL (Max)	750ns, 500ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
