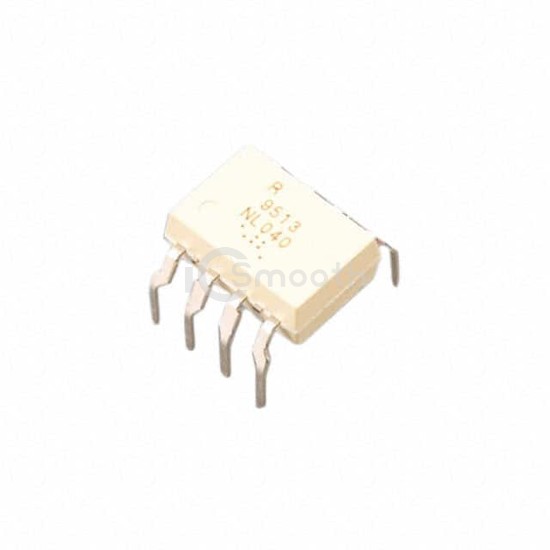

Name: PS9513L1-AX
Brand: Renesas Electronics America Inc
SKU: PS9513L1-AX
Price: 5.61 USD
Availability: InStock

REF: PS9513L1-AX Renesas Electronics America Inc

PS9513L1-AX

Renesas Electronics America Inc

OPTOISO 5KV OPEN COLLECTOR 8DIP

PS9513L1-AX is a Optoisolators - Logic Output manufactured by Renesas Electronics America Inc. OPTOISO 5KV OPEN COLLECTOR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 48

Tiered Pricing USD

1+ $5.6100 —

50+ $3.5648 -36%

100+ $3.3599 -40%

500+ $2.9963 -47%

1,000+ $2.8782 -49%

2,000+ $2.7783 -50% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	15 mA
Data Rate	1Mbps

Propagation Delay tpLH / tpHL (Max)	750ns, 500ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.400", 10.16mm)
Supplier Device Package	8-DIP
