NP75N04YLG-E1-AY

In Stock: 2,418

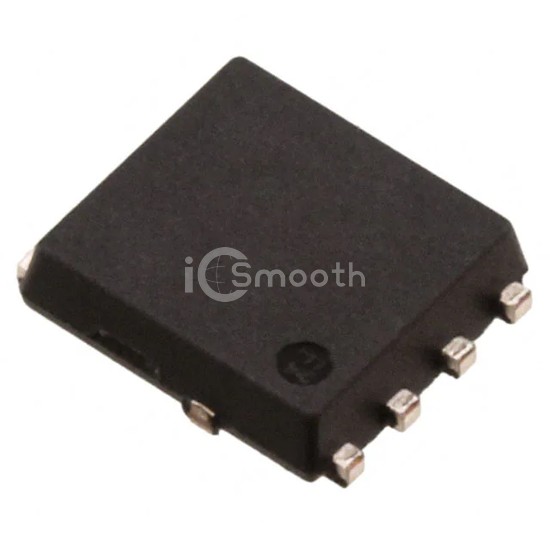

NP75N04YLG-E1-AY - Renesas Electronics America Inc - Transistors - FETs, MOSFETs - Single
REF: NP75N04YLG-E1-AY Renesas Electronics America Inc
NP75N04YLG-E1-AY

Renesas Electronics America Inc

ABU / MOSFET

NP75N04YLG-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. ABU / MOSFET. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerLDFN.

Datasheet Request a Quote

In Stock: 2,418

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C75A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.8mOhm @ 38A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs116 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6450 pF @ 25 V
FET Feature-
Power Dissipation (Max)138W (Ta)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device Package8-HSON (5x5.4)
Package / Case8-PowerLDFN
