Name: NP75N04VUK-E1-AY
Brand: Renesas Electronics America Inc
SKU: NP75N04VUK-E1-AY
Price: 1.30 USD
Availability: InStock

REF: NP75N04VUK-E1-AY Renesas Electronics America Inc

NP75N04VUK-E1-AY

Renesas Electronics America Inc

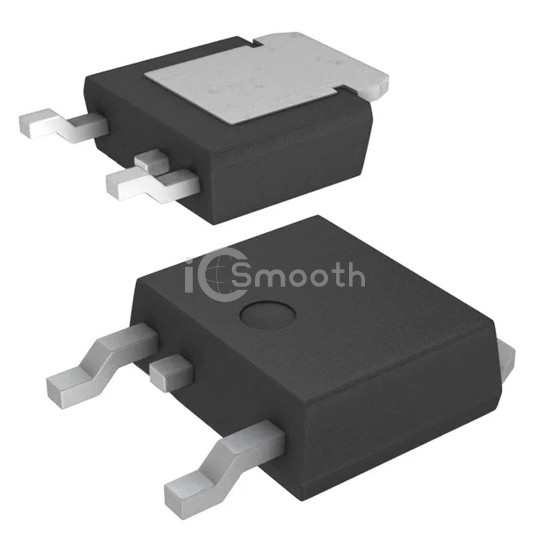

MOSFET N-CH 40V 75A TO252

NP75N04VUK-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 40V 75A TO252. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 9,198

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.7mOhm @ 38A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	45 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta), 75W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (MP-3ZP)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
