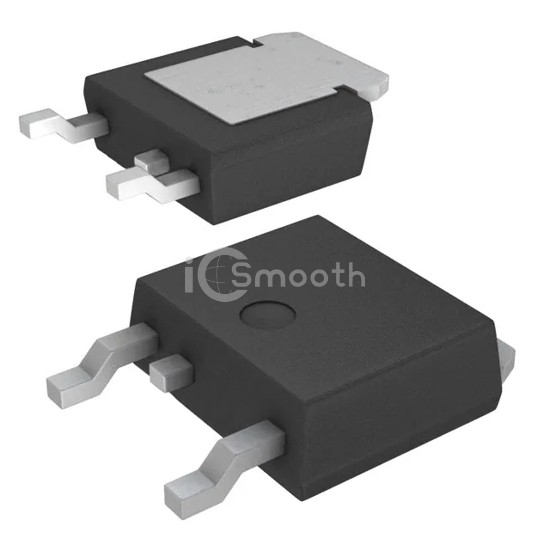

Name: NP60N06VDK-E1-AY
Brand: Renesas Electronics America Inc
SKU: NP60N06VDK-E1-AY
Price: 1.59 USD
Availability: InStock

REF: NP60N06VDK-E1-AY Renesas Electronics America Inc

NP60N06VDK-E1-AY

Renesas Electronics America Inc

P-TRS2 AUTOMOTIVE MOS

NP60N06VDK-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. P-TRS2 AUTOMOTIVE MOS. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 1,634

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.9mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	56 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta), 105W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	TO-252 (MP-3ZP)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
