Name: NP60N055MUK-S18-AY
Brand: Renesas Electronics America Inc
SKU: NP60N055MUK-S18-AY
Availability: InStock

REF: NP60N055MUK-S18-AY Renesas Electronics America Inc

NP60N055MUK-S18-AY

Renesas Electronics America Inc

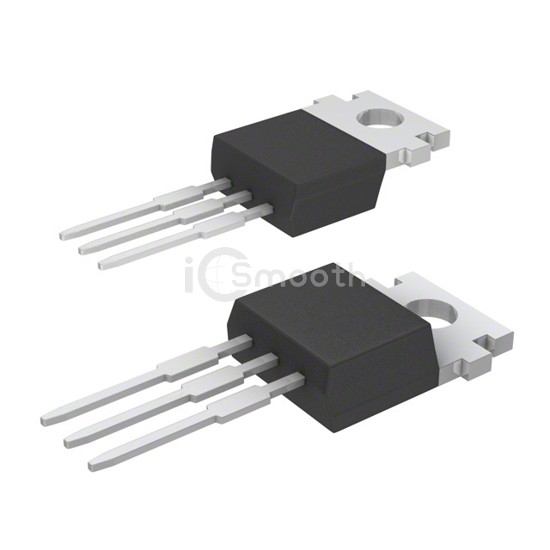

MOSFET N-CH 55V 60A TO220

NP60N055MUK-S18-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 55V 60A TO220. Key specifications: mounting type Through Hole, operating temperature 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,414

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	63 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3750 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta), 105W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
