Name: NP50P03YDG-E1-AY
Brand: Renesas Electronics America Inc
SKU: NP50P03YDG-E1-AY
Price: 1.87 USD
Availability: InStock

REF: NP50P03YDG-E1-AY Renesas Electronics America Inc

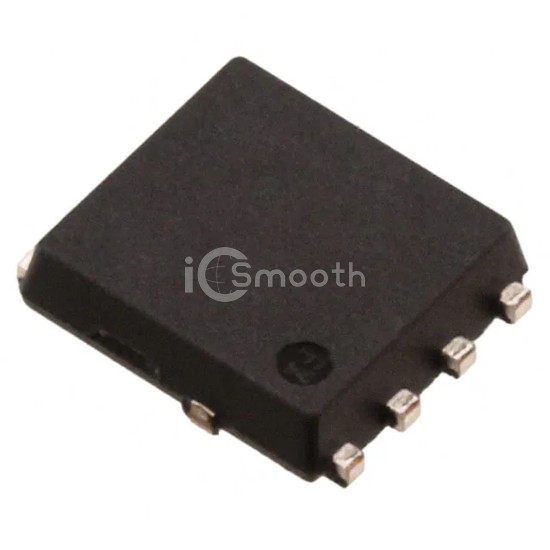

NP50P03YDG-E1-AY

Renesas Electronics America Inc

MOSFET P-CH 30V 50A 8HSON

NP50P03YDG-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 30V 50A 8HSON. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case 8-SMD, Flat Lead Exposed Pad.

Datasheet Request a Quote

In Stock: 1,721

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	8.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	96 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 102W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HSON
Package / Case	8-SMD, Flat Lead Exposed Pad
