Name: NP23N06YDG-E1-AY
Brand: Renesas Electronics America Inc
SKU: NP23N06YDG-E1-AY
Price: 0.61 USD
Availability: InStock

REF: NP23N06YDG-E1-AY Renesas Electronics America Inc

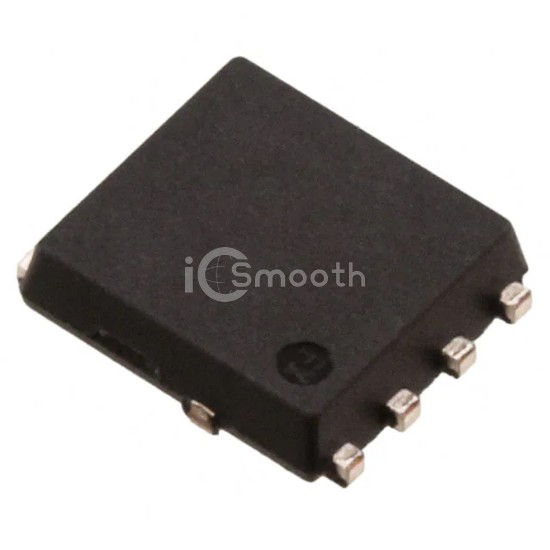

NP23N06YDG-E1-AY

Renesas Electronics America Inc

MOSFET N-CH 60V 23A 8HSON

NP23N06YDG-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 60V 23A 8HSON. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case 8-SMD, Flat Lead Exposed Pad.

Datasheet Request a Quote

In Stock: 5,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	27mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	41 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1W (Ta), 60W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HSON
Package / Case	8-SMD, Flat Lead Exposed Pad
