Name: NP180N04TUK-E1-AY
Brand: Renesas Electronics America Inc
SKU: NP180N04TUK-E1-AY
Price: 5.41 USD
Availability: InStock

REF: NP180N04TUK-E1-AY Renesas Electronics America Inc

NP180N04TUK-E1-AY

Renesas Electronics America Inc

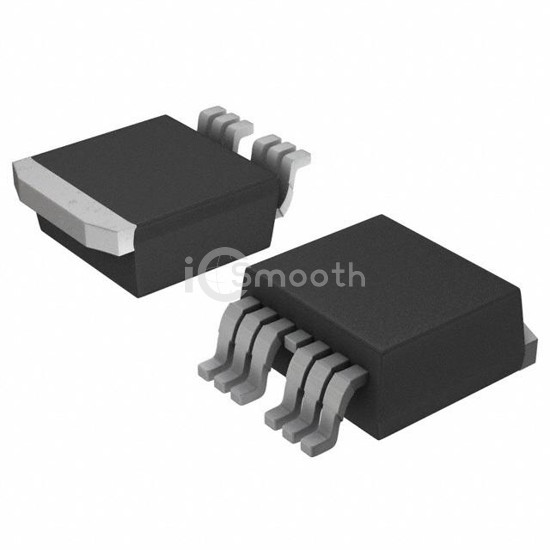

MOSFET N-CH 40V 180A TO263-7

NP180N04TUK-E1-AY is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 40V 180A TO263-7. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 3,538

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.05mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	297 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	15750 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta), 348W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
