Name: ISL84684IRZ
Brand: Renesas Electronics America Inc
SKU: ISL84684IRZ
Availability: InStock

REF: ISL84684IRZ Renesas Electronics America Inc

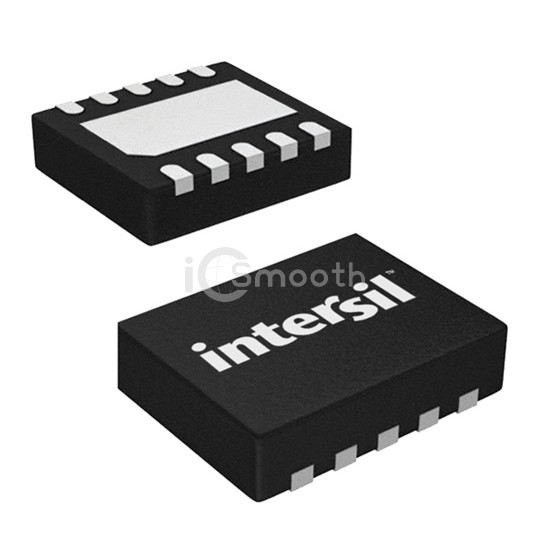

ISL84684IRZ

IC SWITCH DUAL SPDT 10TDFN

ISL84684IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,455

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	55mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 27ns

-3db Bandwidth	-
Charge Injection	94pC
Channel Capacitance (CS(off), CD(off))	65pF
Current - Leakage (IS(off)) (Max)	4nA
Crosstalk	-85dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x3)
