Name: ISL84684IIZ-T
Brand: Renesas Electronics America Inc
SKU: ISL84684IIZ-T
Price: 1.36 USD
Availability: InStock

REF: ISL84684IIZ-T Renesas Electronics America Inc

ISL84684IIZ-T

Renesas Electronics America Inc

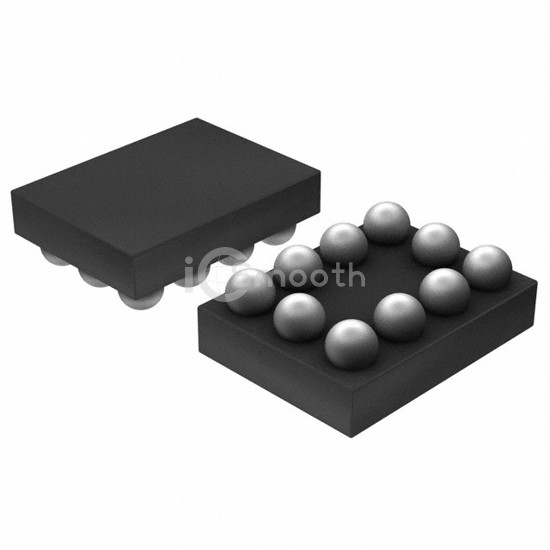

IC SWITCH DUAL SPDT 10WLCSP

ISL84684IIZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFBGA, WLCSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 3,660

Tiered Pricing USD

3,000+ $1.3567 —

6,000+ $1.3057 -4% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	140mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.8V ~ 4.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 35ns

-3db Bandwidth	-
Charge Injection	260pC
Channel Capacitance (CS(off), CD(off))	140pF
Current - Leakage (IS(off)) (Max)	900nA (Typ)
Crosstalk	-105dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFBGA, WLCSP
Supplier Device Package	10-WLCSP (2x1.5)
