Name: ISL84543IPZ
Brand: Renesas Electronics America Inc
SKU: ISL84543IPZ
Availability: InStock

REF: ISL84543IPZ Renesas Electronics America Inc

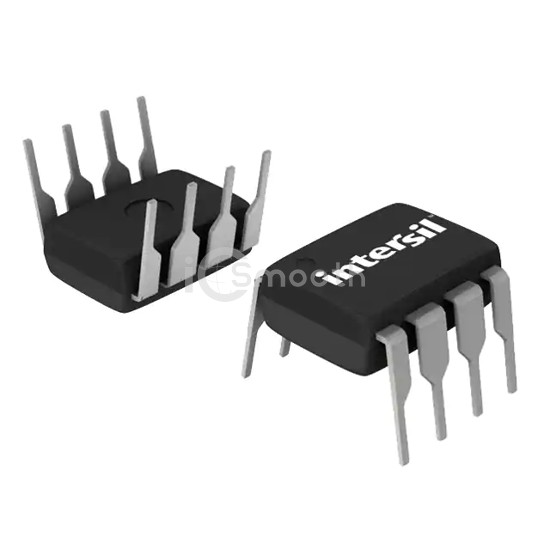

ISL84543IPZ

IC SWITCH DUAL SPST 8DIP

ISL84543IPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPST 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 8-DIP (0.300", 7.62mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 6,956

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	100ns, 75ns

-3db Bandwidth	-
Charge Injection	1pC
Channel Capacitance (CS(off), CD(off))	8pF, 8pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-90dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP
