Name: ISL6580CR
Brand: Renesas Electronics America Inc
SKU: ISL6580CR
Availability: InStock

REF: ISL6580CR Renesas Electronics America Inc

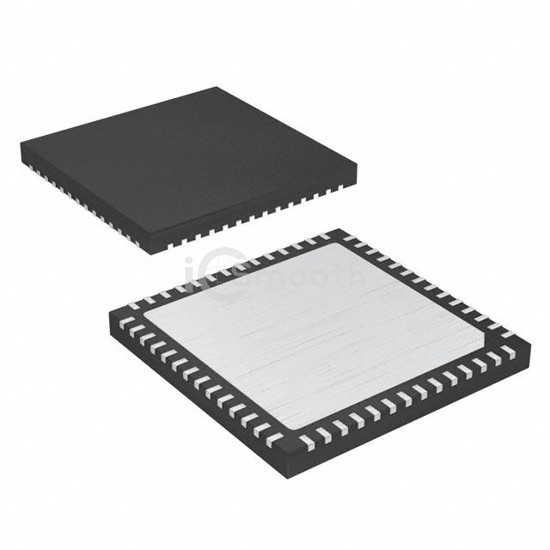

ISL6580CR

IC PWR DRIVER N-CHAN 1:1 56QFN

ISL6580CR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Renesas Electronics America Inc. IC PWR DRIVER N-CHAN 1:1 56QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.3V, 5V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,568

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	12
Ratio - Input:Output	1:1
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	I²C
Voltage - Load	12V (Max)
Voltage - Supply (Vcc/Vdd)	3.3V, 5V

Current - Output (Max)	25A
Rds On (Typ)	20mOhm
Input Type	-
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature	0°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	56-QFN (8x8)
Package / Case	56-VFQFN Exposed Pad
