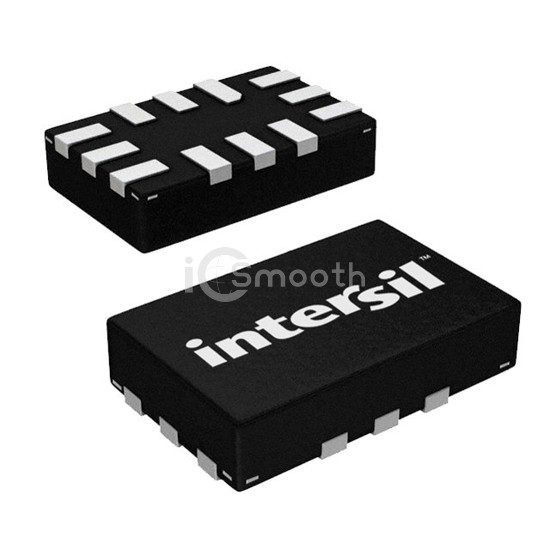

Name: ISL54233IRUZ-TS2722
Brand: Renesas Electronics America Inc
SKU: ISL54233IRUZ-TS2722
Availability: InStock

REF: ISL54233IRUZ-TS2722 Renesas Electronics America Inc

ISL54233IRUZ-TS2722

Renesas Electronics America Inc

IC MUX USB 2.0 HS UART 12TQFN

ISL54233IRUZ-TS2722 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX USB 2.0 HS UART 12TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFQFN, number of circuits 2.

Request a Quote

In Stock: 6,221

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	3:1
Number of Circuits	2
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	70mOhm
Voltage - Supply, Single (V+)	2.7V ~ 4.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	1.6GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	3pF
Current - Leakage (IS(off)) (Max)	15nA
Crosstalk	-36dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-UFQFN
Supplier Device Package	12-uTQFN (2.2x1.4)
