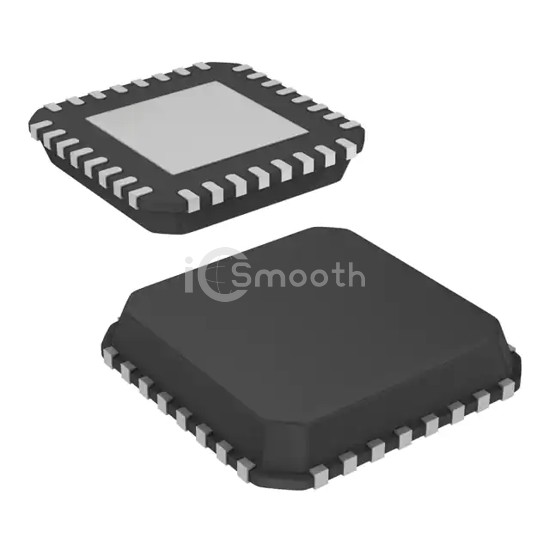

Name: ISL54230IRTZ-T
Brand: Renesas Electronics America Inc
SKU: ISL54230IRTZ-T
Availability: InStock

REF: ISL54230IRTZ-T Renesas Electronics America Inc

ISL54230IRTZ-T

IC SWITCH QUAD DPDT 32TQFN

ISL54230IRTZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD DPDT 32TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 32-WFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 3,752

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	4
On-State Resistance (Max)	1.5Ohm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	2V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	310MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	21pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-90dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	32-WFQFN Exposed Pad
Supplier Device Package	32-TQFN (5x5)
