Name: ISL54059IRTZ-T
Brand: Renesas Electronics America Inc
SKU: ISL54059IRTZ-T
Price: 0.80 USD
Availability: InStock

REF: ISL54059IRTZ-T Renesas Electronics America Inc

ISL54059IRTZ-T

Renesas Electronics America Inc

IC SWITCH DUAL SPDT 10TDFN

ISL54059IRTZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPDT 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,023

Tiered Pricing USD

6,000+ $0.8003 —

12,000+ $0.7861 -2% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	520mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.8V ~ 6.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 16ns

-3db Bandwidth	60MHz
Charge Injection	170pC
Channel Capacitance (CS(off), CD(off))	36pF
Current - Leakage (IS(off)) (Max)	8.13nA
Crosstalk	-75dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

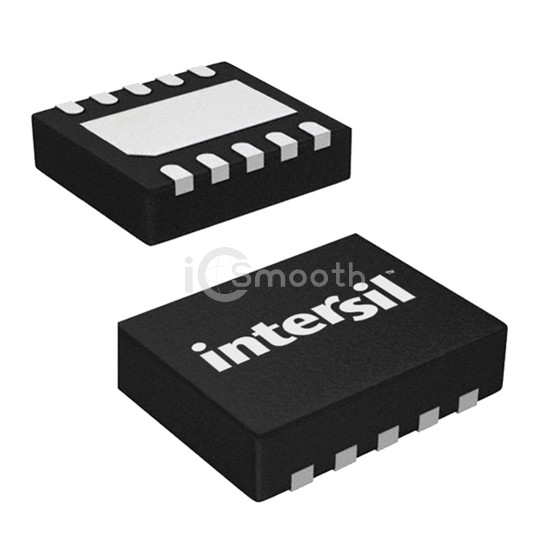

Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-TDFN (3x3)
