Name: ISL54057IRUZ-T
Brand: Renesas Electronics America Inc
SKU: ISL54057IRUZ-T
Availability: InStock

REF: ISL54057IRUZ-T Renesas Electronics America Inc

ISL54057IRUZ-T

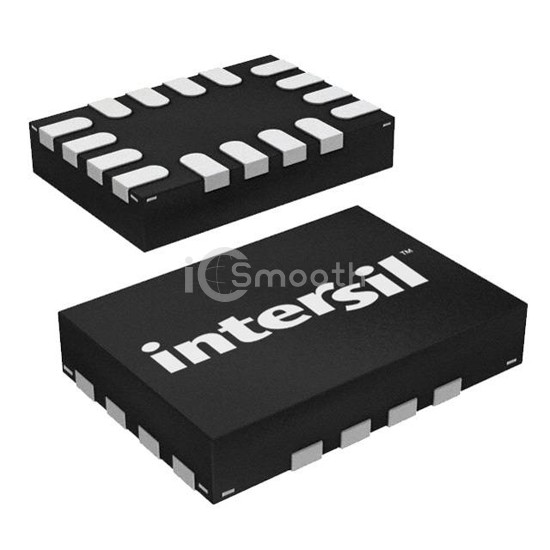

IC SWITCH 4X1 16UTQFN

ISL54057IRUZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH 4X1 16UTQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,537

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	90mOhm
Voltage - Supply, Single (V+)	1.6V ~ 3.6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	27ns, 18ns

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	44pF, 149pF
Current - Leakage (IS(off)) (Max)	4nA
Crosstalk	-100dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-UTQFN (2.6x1.8)
