Name: ISL54052IRUZ-T
Brand: Renesas Electronics America Inc
SKU: ISL54052IRUZ-T
Availability: InStock

REF: ISL54052IRUZ-T Renesas Electronics America Inc

ISL54052IRUZ-T

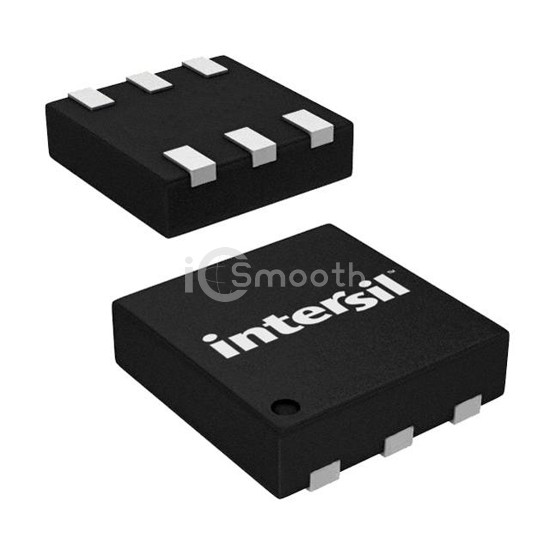

IC SWITCH SPST 6UTDFN

ISL54052IRUZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH SPST 6UTDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 8,020

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	860mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	24ns, 10ns

-3db Bandwidth	190MHz
Charge Injection	26pC
Channel Capacitance (CS(off), CD(off))	16pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-UTDFN (1.2x1)
