Name: ISL5120IH-T
Brand: Renesas Electronics America Inc
SKU: ISL5120IH-T
Availability: InStock

REF: ISL5120IH-T Renesas Electronics America Inc

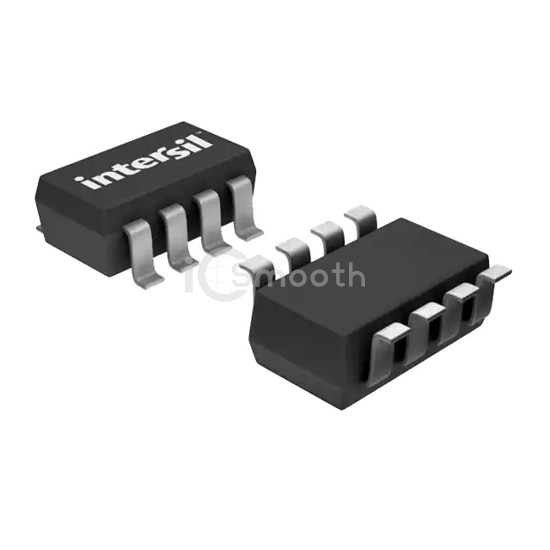

ISL5120IH-T

IC SWITCH DUAL SPST SOT23-8

ISL5120IH-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH DUAL SPST SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,671

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	20Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 30ns

-3db Bandwidth	-
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	8pF, 8pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-105dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
