Name: ISL43741IRZ-T
Brand: Renesas Electronics America Inc
SKU: ISL43741IRZ-T
Availability: InStock

REF: ISL43741IRZ-T Renesas Electronics America Inc

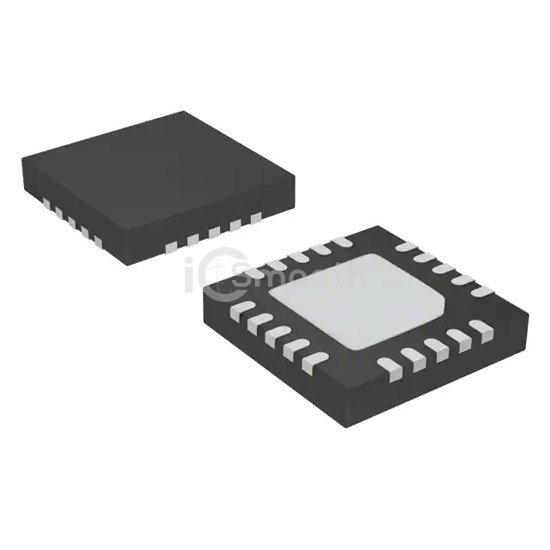

ISL43741IRZ-T

IC MUX/DEMUX DUAL 4X1 20QFN

ISL43741IRZ-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX DUAL 4X1 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,656

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	1.3Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2V ~ 6V
Switch Time (Ton, Toff) (Max)	50ns, 35ns

-3db Bandwidth	-
Charge Injection	0.3pC
Channel Capacitance (CS(off), CD(off))	3pF, 12pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-110dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
