Name: ISL43640IRZ-T7A
Brand: Renesas Electronics America Inc
SKU: ISL43640IRZ-T7A
Availability: InStock

REF: ISL43640IRZ-T7A Renesas Electronics America Inc

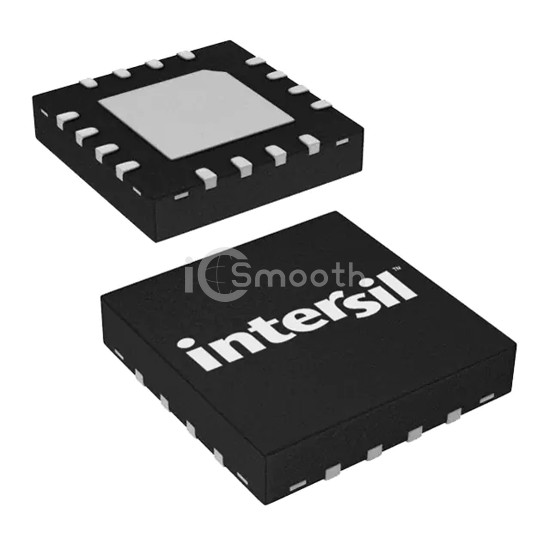

ISL43640IRZ-T7A

IC MUX/DEMUX 1 X 4:1 16QFN

ISL43640IRZ-T7A is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX 1 X 4:1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,038

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	50Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 28ns

-3db Bandwidth	-
Charge Injection	1.2pC
Channel Capacitance (CS(off), CD(off))	4pF, 11pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-VFQFN Exposed Pad
Supplier Device Package	16-QFN (3x3)
