Name: ISL43240IR
Brand: Renesas Electronics America Inc
SKU: ISL43240IR
Availability: InStock

REF: ISL43240IR Renesas Electronics America Inc

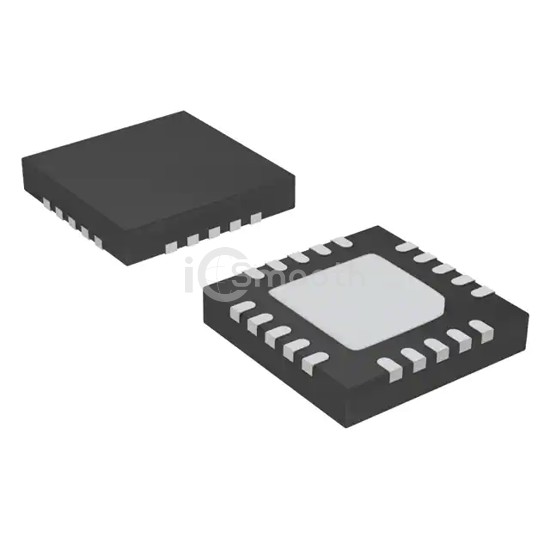

ISL43240IR

IC SWITCH QUAD SPDT 20QFN

ISL43240IR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPDT 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 5,332

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	25Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2V ~ 6V
Switch Time (Ton, Toff) (Max)	65ns, 50ns

-3db Bandwidth	-
Charge Injection	5pC (Max)
Channel Capacitance (CS(off), CD(off))	10pF, 10pF
Current - Leakage (IS(off)) (Max)	200pA
Crosstalk	-92dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)
