Name: HI9P0201HS-9
Brand: Renesas Electronics America Inc
SKU: HI9P0201HS-9
Availability: InStock

REF: HI9P0201HS-9 Renesas Electronics America Inc

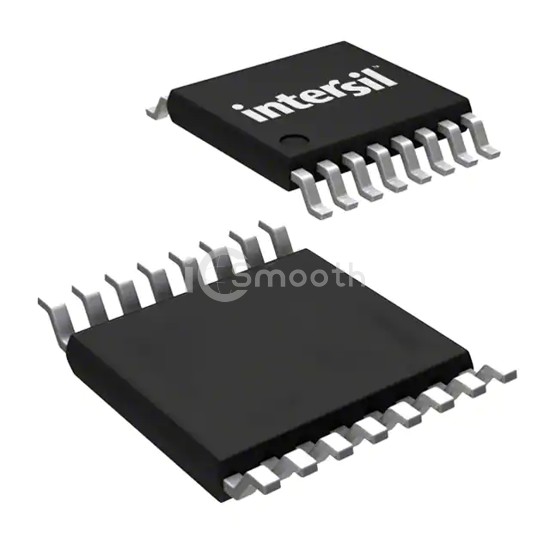

HI9P0201HS-9

IC SWITCH QUAD SPST 16SOIC

HI9P0201HS-9 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 1,347

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	50Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	50ns, 50ns

-3db Bandwidth	-
Charge Injection	10pC
Channel Capacitance (CS(off), CD(off))	10pF, 10pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-86dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
