HI4P0509-5Z96

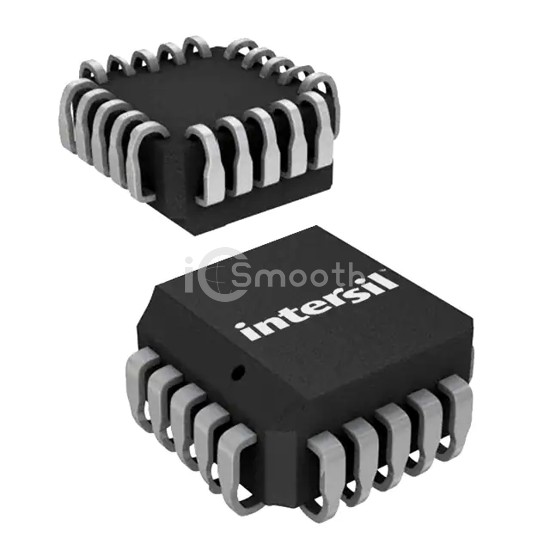

IC MULTIPLEXER DUAL 4X1 20PLCC

HI4P0509-5Z96 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER DUAL 4X1 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 20-LCC (J-Lead), number of circuits 2.

Datasheet Request a Quote

In Stock: 5,742

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	400Ohm
Channel-to-Channel Matching (ΔRon)	20Ohm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	250ns, 250ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF, 12pF
Current - Leakage (IS(off)) (Max)	30pA (Typ)
Crosstalk	-
Operating Temperature	0°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
